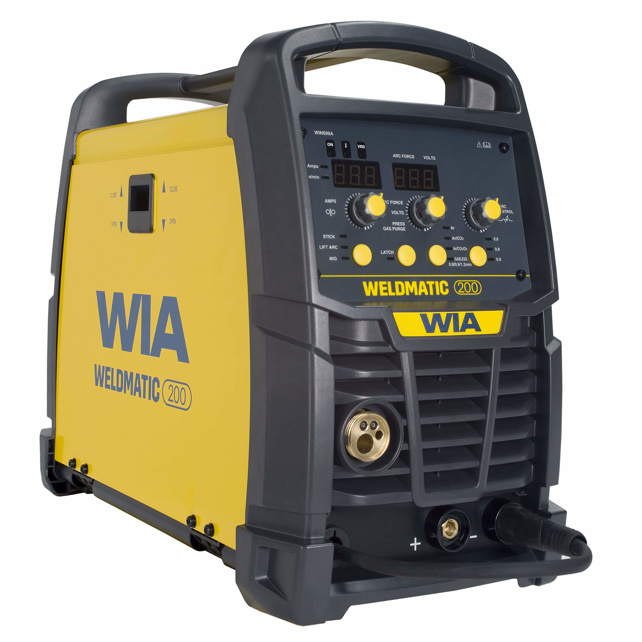

Want a transportable machine capable of MIG, TIG and Stick welding? From the workshop to on-site, the Weldmatic 200 can go where you go. It takes both 1kg & 5kg spools making it perfect for smaller welding jobs, and comes equipped with digital meters for easier parameter adjustment.
$1,345.00
Built with quality components, the Weldmatic 200 delivers on reliability and performance, making it the perfect portable choice for intermediate and professional welders.
MIG, Stick and TIG weld with this all-in-one machine.
Weighing only 15kg, the Weldmatic 200 can go where you go.
Takes 1kg and 5kg spools. The Weldmatic suits both gas shielded and gasless wires.
Controls how far the wire burns back to the tip on completion of the welding operation.
Primary Voltage – 240 VAC-50/60Hz
Rated Primary Current – 14 Amps
Max Primary Current – 36 Amps
Recommended Generator Power – 12 kVa
Supply Plug – 15 Amp
Weldable Materials – Steel, Stainless Steel, Aluminium
Output Range – 30A/15.5V-200A/24V
Rated Output @ 40°C (10min) – 200A/24V @ 15% / 100A/19V @ 60% / 77A/17.9V @ 100%
Wire Size Range – 0.6/0.8/0.9/1.2mm
Material Thickness Range – Welds up to 8mm steel plate, single pass
Current Range – 20A/20.8V-170A/26.8V
Rated Output @ 40°C (10min) – 170A/26.8V @ 15% / 85A/23.4V @ 60% / 66A/22.6V @ 100%
Current Range – 15A/10.6V-200A/18V
Rated Output @ 40°C (10min) – 200A/18V @ 15% / 100A/14V @ 60% / 77A/13.1V @ 100%
Warranty – 3 Years
| Weight | 25 kg |
|---|---|
| Dimensions | 60 × 30 × 50 cm |
