Description

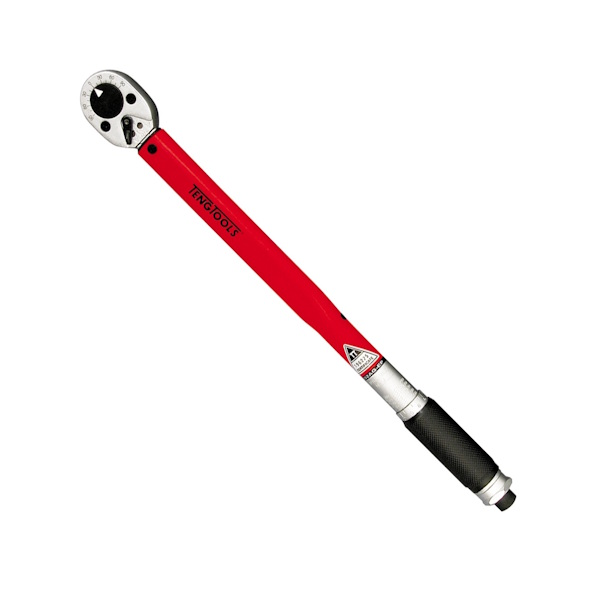

TengTools 3/8″ Torque Wrench 20 – 110Nm

TengTools 3892AG-E3 3/8″ torque wrench delivers a torque range of 20–110 Nm with ±4% accuracy. This torque range is versatile, particularly suited to precision tightening of mid-sized fasteners across various engineering fields. Its click-type mechanism signals when the desired torque is reached, ensuring precision in fastening tasks. The additional ft/lb reference scale accommodates different measurement requirements, allowing you to work across various systems with ease. Featuring an in-built angular gauge, the wrench streamlines after-tightening procedures.

The twist locking feature maintains the set torque, ensuring consistent performance. With its reversible 24-tooth ratchet mechanism (DIN3122) and 15° increments, it provides smooth operation for right-hand (clockwise) fasteners. Clear markings show where to place the hand to enhance accuracy during use. Weighing 844 g and measuring 35.9 mm in width and 368 mm in length, this tool is designed for mid-range torque applications and is practical to handle. It comes with a storage case for secure transport and protection. Each torque wrench is assigned a unique number and individually tested to comply with ISO 6789 standards and comes with a ‘Declaration of Conformance’ for guaranteed accuracy.

• Features:
  • Torque wrench according to ISO 6789 specifications
  • With ratchet the torque wrench can be used for both tightening and final checking of torque settings
  • Reversible with lever, but only for right handed action torque checking
  • Equipped with angular gauge for after tightening
  • Graduated in NM and foot lbs
  • Lockable setting
  • Accuracy +/- 4%
  • Satin finish
  • Rubber handle
  • Degree scale for after tightening of cylinder heads

  Specifications:

  • Drive: 3/8″
  • DIN: 3122
  • Range: 20-100Nm / 15-75 ft/lbs
  • Scale: 1.0Nm / 1.0 ft/lbs
  • L: 368mm, B: 35.9mm, H: 27.7mm
